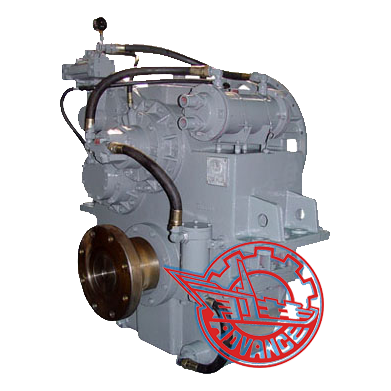

Tên sản phẩm:HỘP SỐ HTC600A/1
-
Giá:Liên hệ
-
Model:HTC600A/1
-
Mã số:HTC600A/1
-
Số lượng tồn hàng:Đặt hàng
-
Lượt xem:1127
| Input speed | 1000-2100r/min | ||
| Reduction ratio | 7.043、7.69、8.23 | Trans. capacity | 0.441kw/r/min |
| 8.82 | 0.412kw/r/min | ||
| 9.47 | 0.400kw/r/min | ||
| 10.10 10.80 | 0.375kw/r/min | ||
| 11.65 | 0.353kw/r/min | ||
| 12.57 | 0.331kw/r/min | ||
| 14.44 | 0.257kw/r/min | ||
| 15.91 | 0.204kw/r/min | ||
| Control way | Push-and-pull flexible shaft, electrically, pneumatically | ||
| Rated thrust | 140KN | ||
| Center distance | 500mm | ||
| L×W×H | 878x1224x1346mm | ||
| Net weight | 1700kg | ||
| Flywheel | SAE21、18、16 | ||
| Bell housing | SAE00、0 | ||
